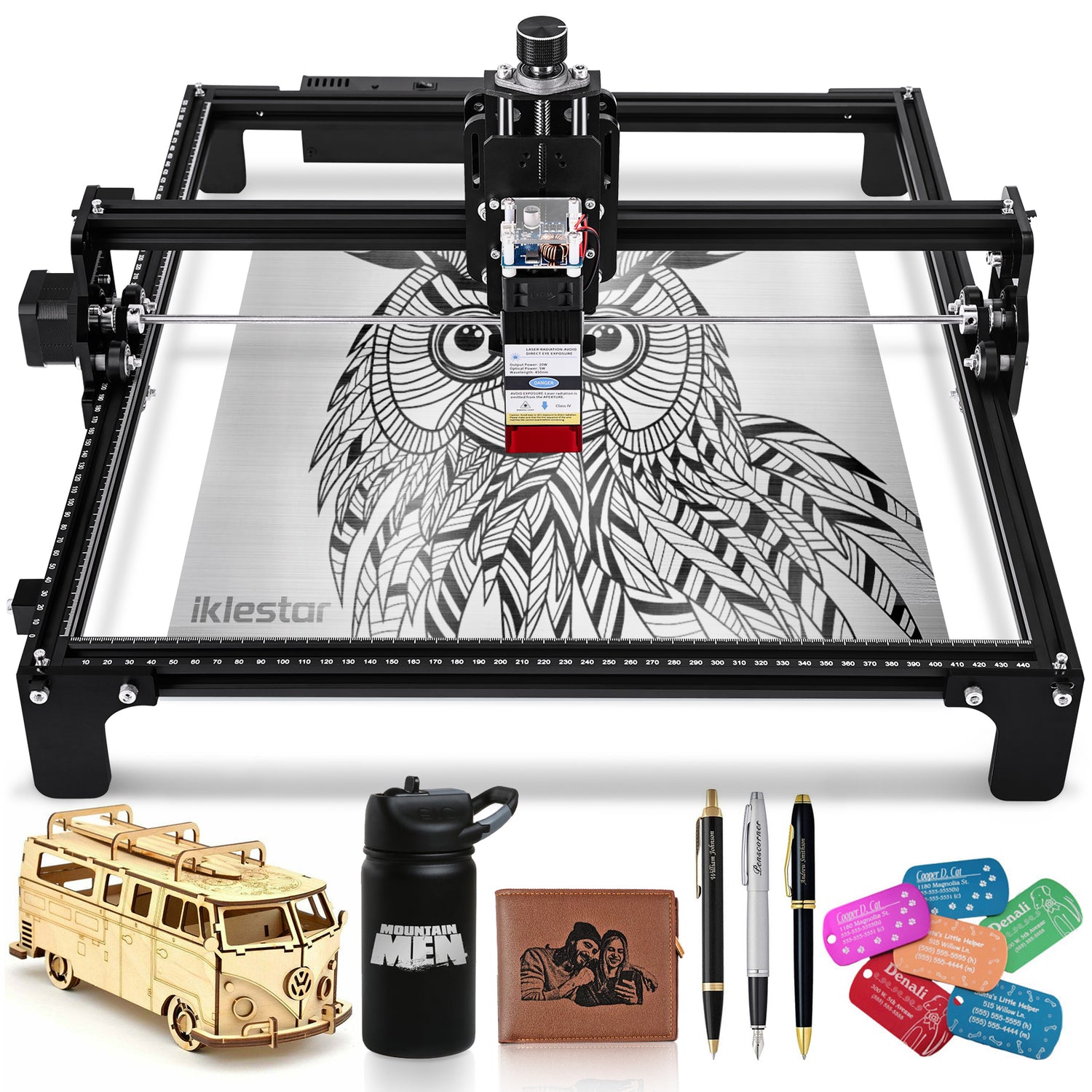

YEARTOP CNC Laser Engraver Machine 4240

Regular price $229.99 USD
Regular price Sale price $229.99 USD
Shipping calculated at checkout.

Upgraded Engraver

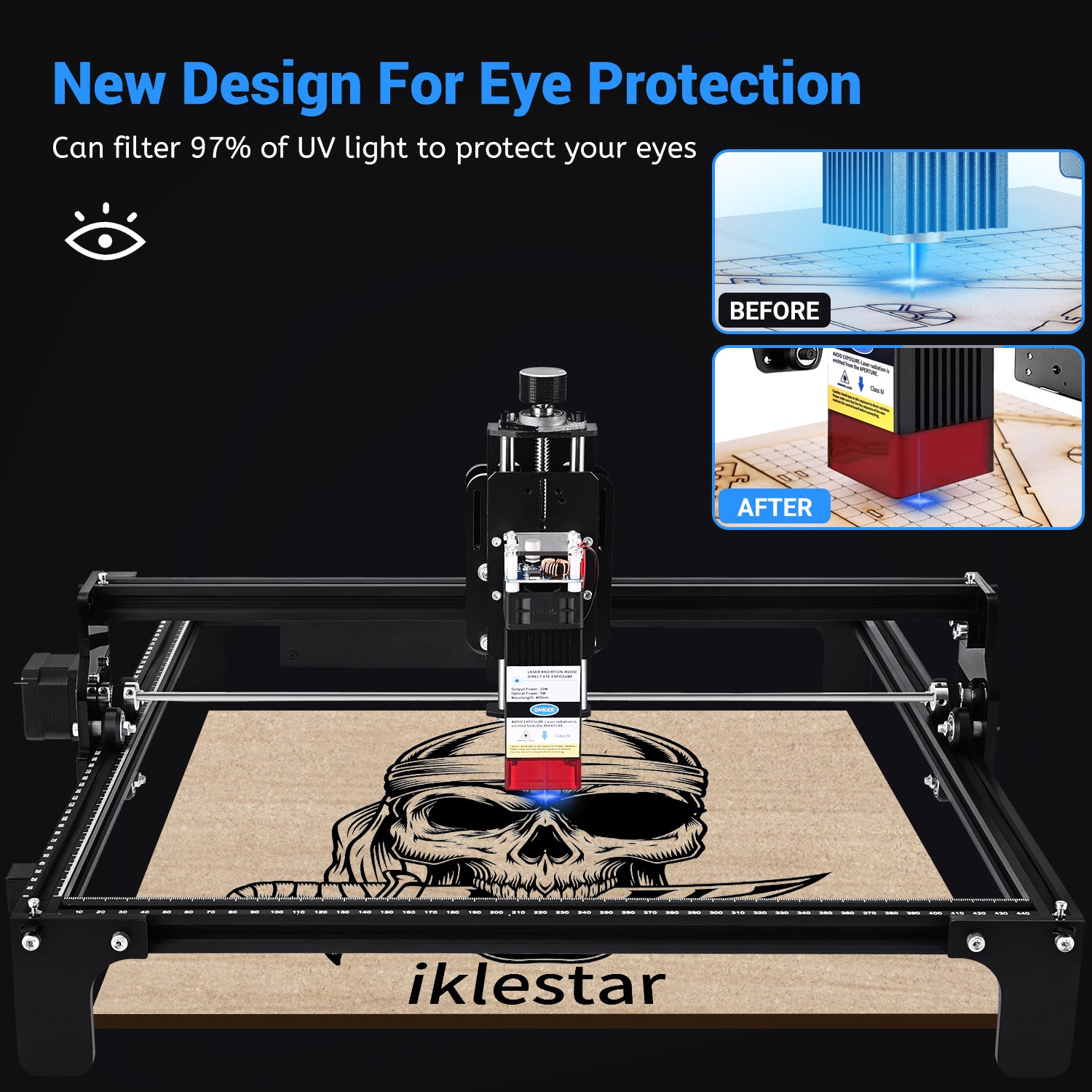

Fixed-focus laser engraving tool, the compressed spot of 0.08*0.08mm makes engraving and cutting more powerful and precise. The filter cover can filter 97% of UV light to protect your eyes.

Perfect Engraving

Powerful 20W/40W output power and 0.01mm engraving accuracy, can easily cut 4mm plywood in a single pass, the engraving speed can be as high as 10000mm/min.

User-Friendly Design

Large engraving area of 420x400mm(16.54"x15.75") can meet various engraving needs. The X-axis and Y-axis have scale ruler for quick measurement of engraved objects. The Z-axis is convenient to move to adjust the lens.

Wide Compatibility & Uses

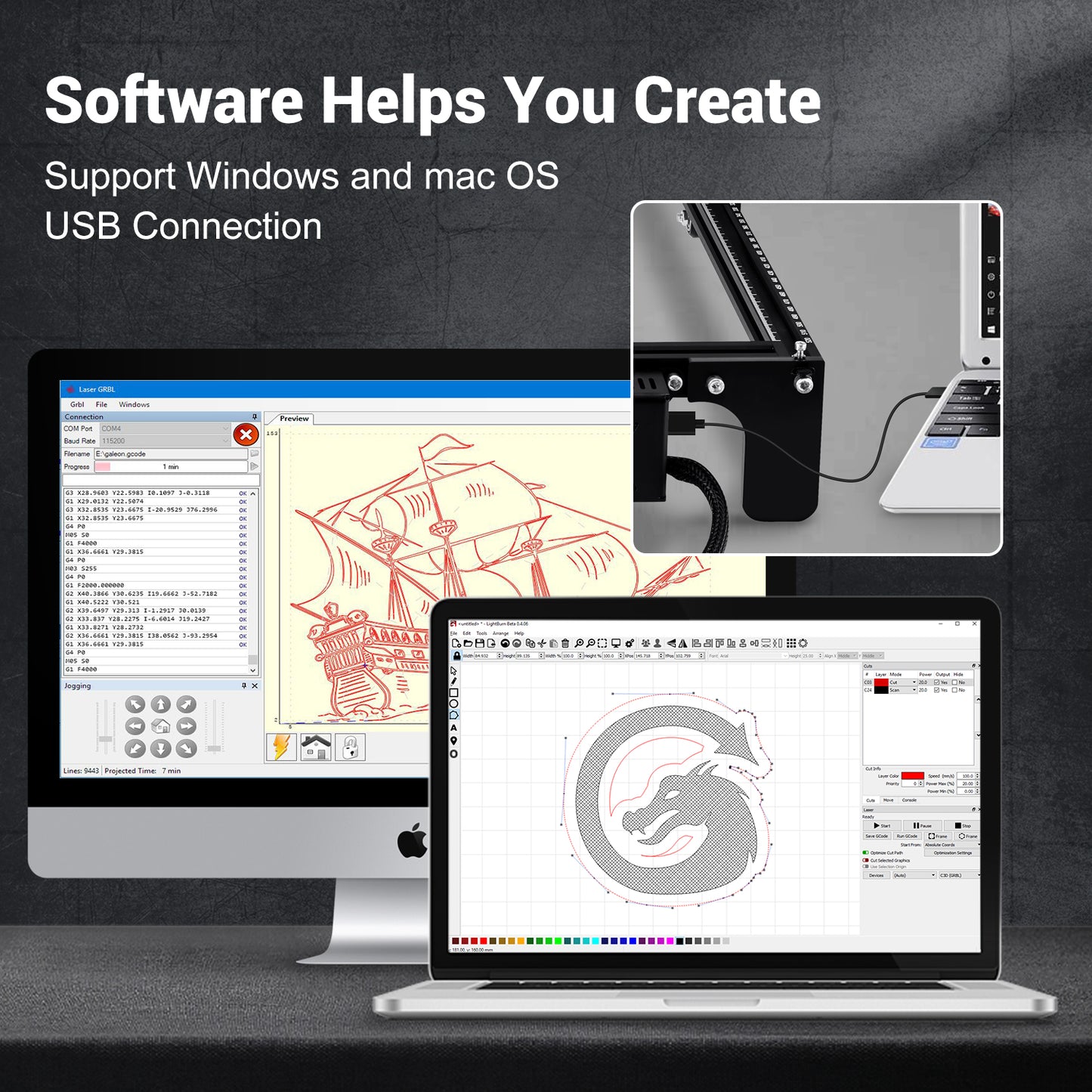

Compatible with various engraving software: GRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and macOS, engraving file format supports NC, BMP, JPG, PNG, DXF, etc. Suitable for wood, bamboo, acrylic, paper, leather, stainless steel, etc.

Installation & Service

Designed for easy installation and long-lasting use, the entire engraving machine adopts a modular design, which is convenient for users to assemble. The machine enjoys a one-year warranty, and we provide free maintenance, replacement parts and technical support service.

FAQ about YEARTOP 4240 Engraver

Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. But the main parts are pre-assembled. The assembly can be completed within 10-20 minutes.

Q: How long can I use each day?

A: It is recommended that the maximum continuous use time should not exceed 12 hours, so as not to affect the service life of the product.

  • Color: Black
  • Product Size: 600 * 540 * 285mm
  • Working Area: 420 * 400mm
  • Power Supply: 24V 2A
  • Stepping Motor: 42 * 48mm
  • Limit Switch: Yes
  • Precision: 0.01mm
  • Optical Power: 5000mW / 10000mW (optional)
  • Wavelength: 450±5nm
  • Light Spot:0.08 * 0.08mm
  • Interface: 3 pin (12V, GND, PWM)

Package Included:
  • 1 * CNC Engraving Machine (main parts pre-assembled)
  • 1 * 20W / 40W output power laser module (optional)
  • 1 * Power adapter (24V 2A)
  • 1 * USB flash drive & cable
  • 1 * Test materials
  • 1 * User manual
