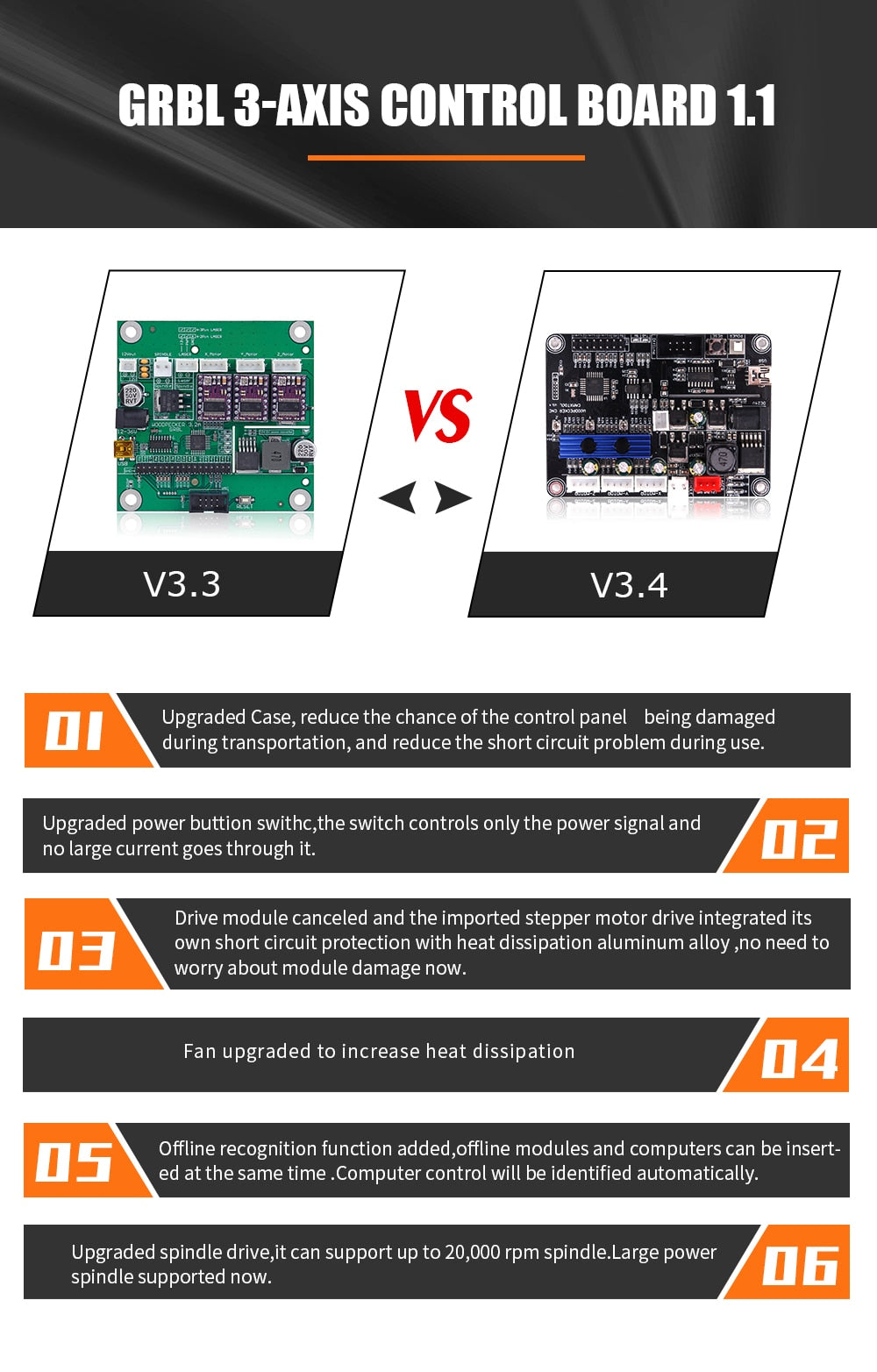

iklestar™ Upgraded GRBL Control Board
Couldn't load pickup availability
This control board is compatible with IKLESTAR™ CNC 3018-PRO, 3018-PRO MAX, 1610, 2418.

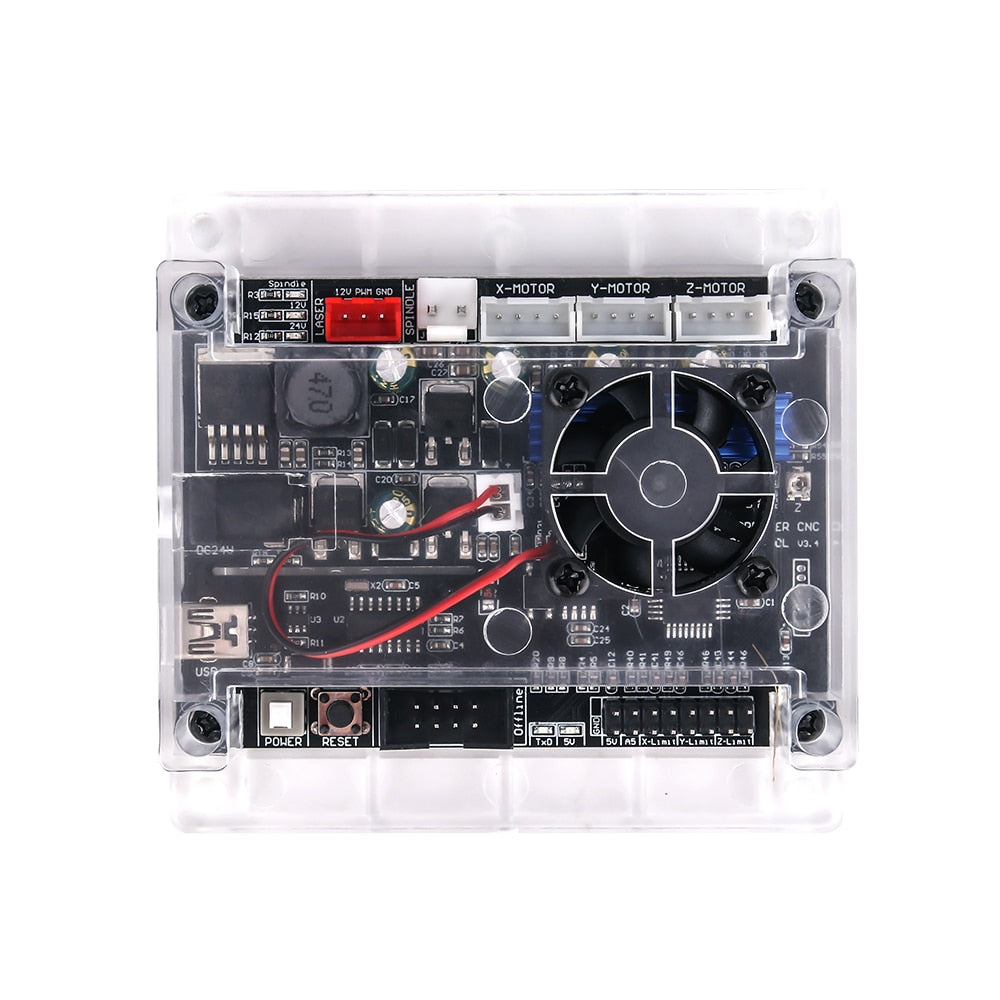

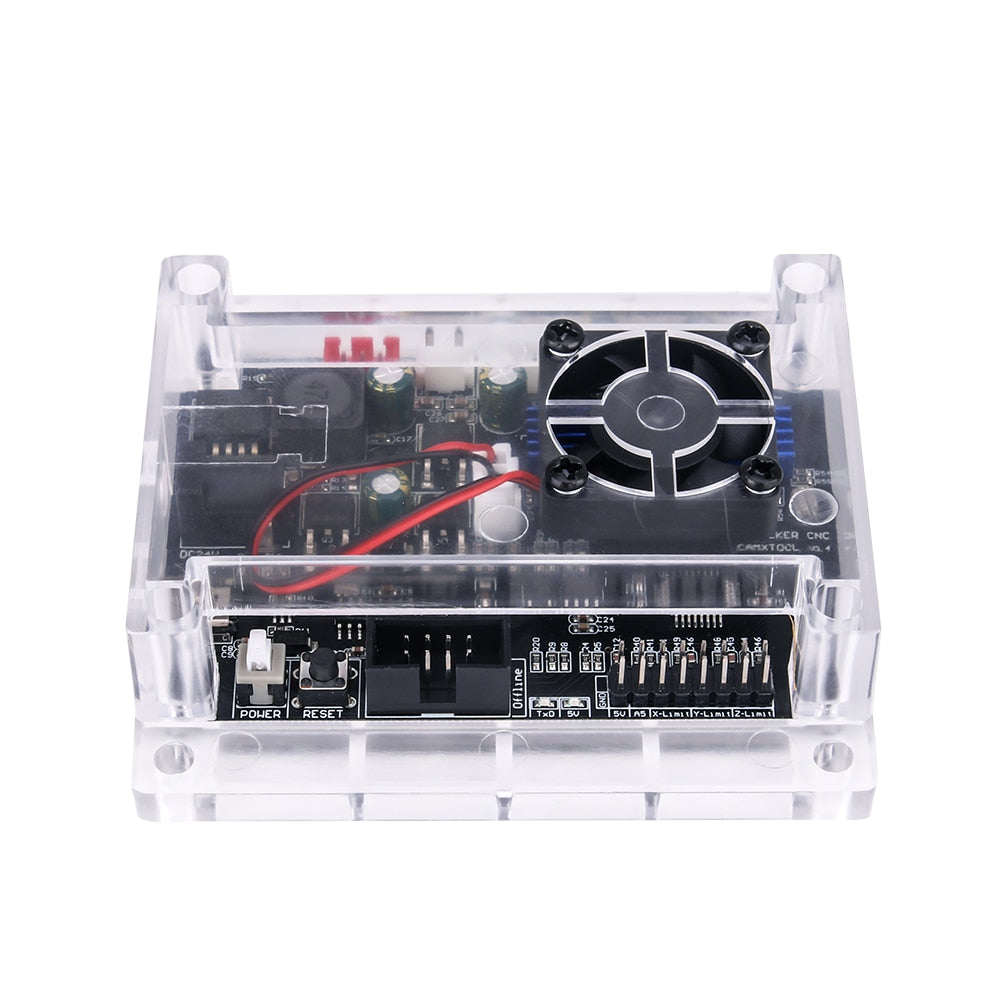

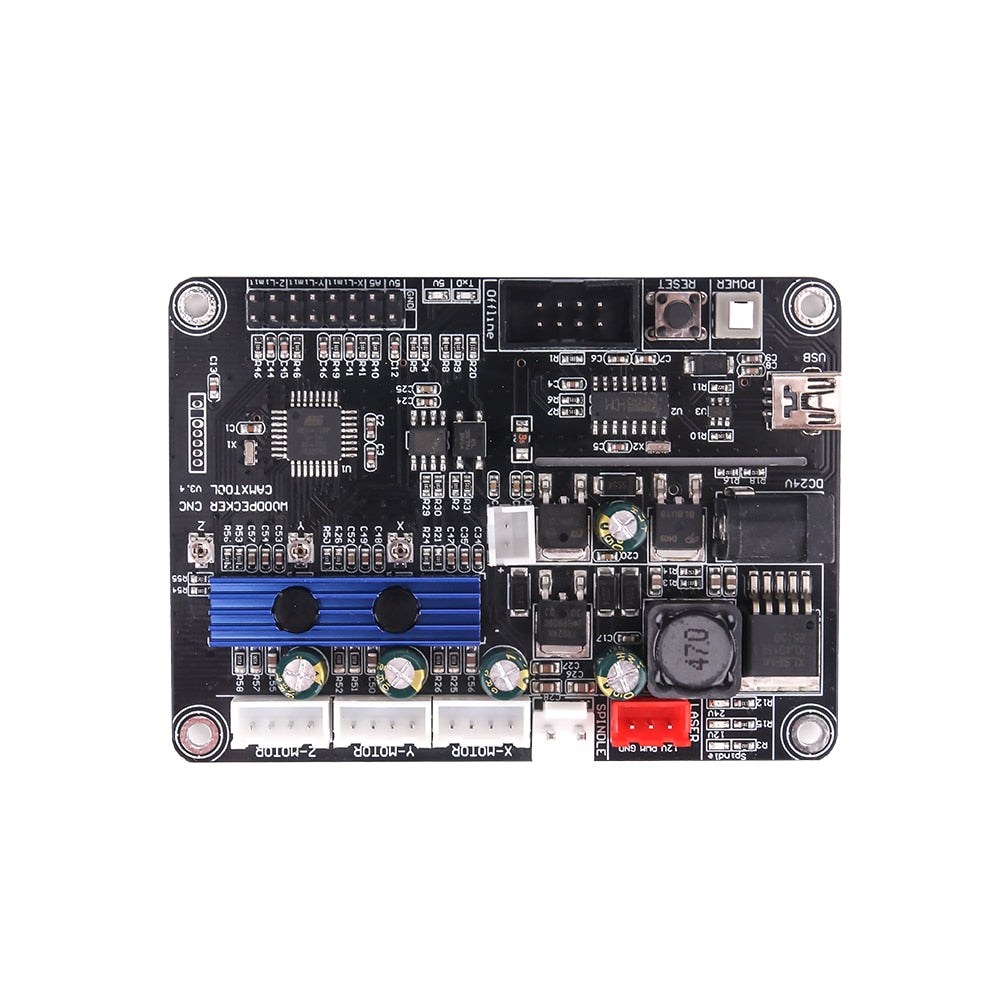

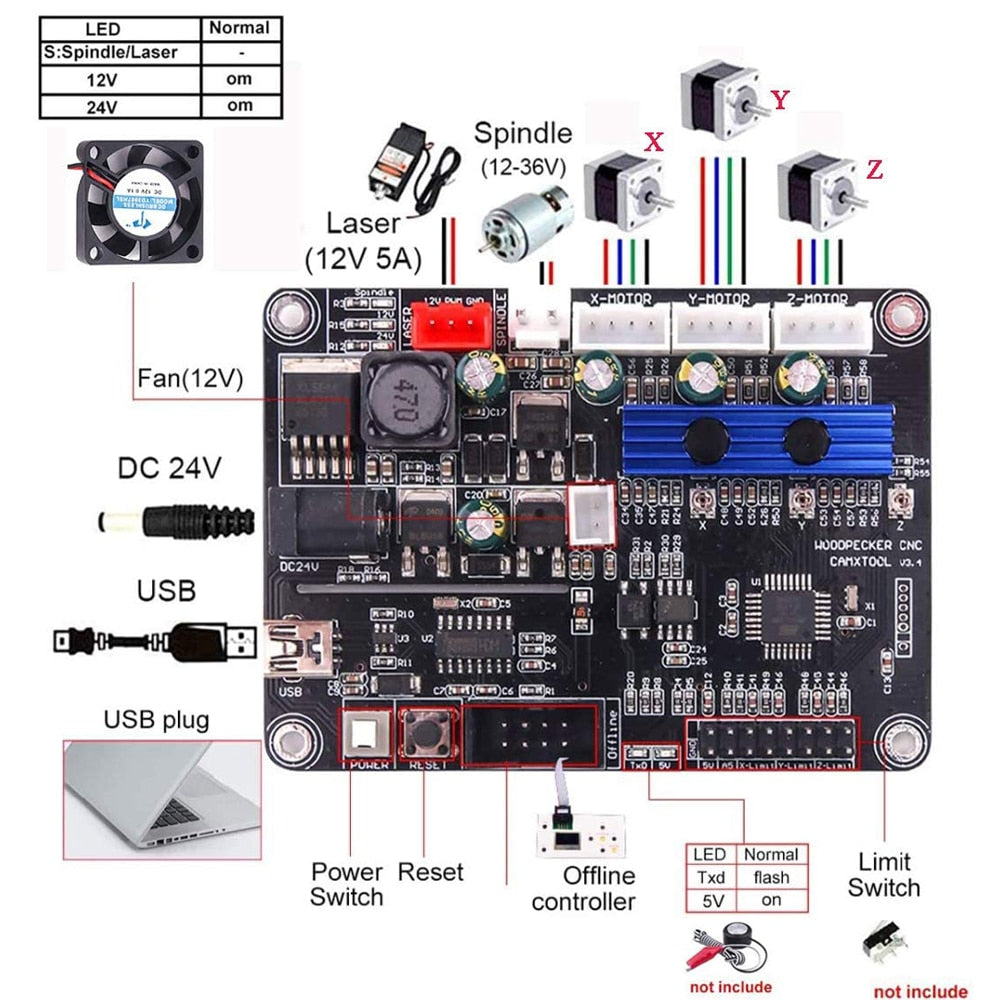

GRBL Control Board:
1. Connection: USB (USB-CH340)

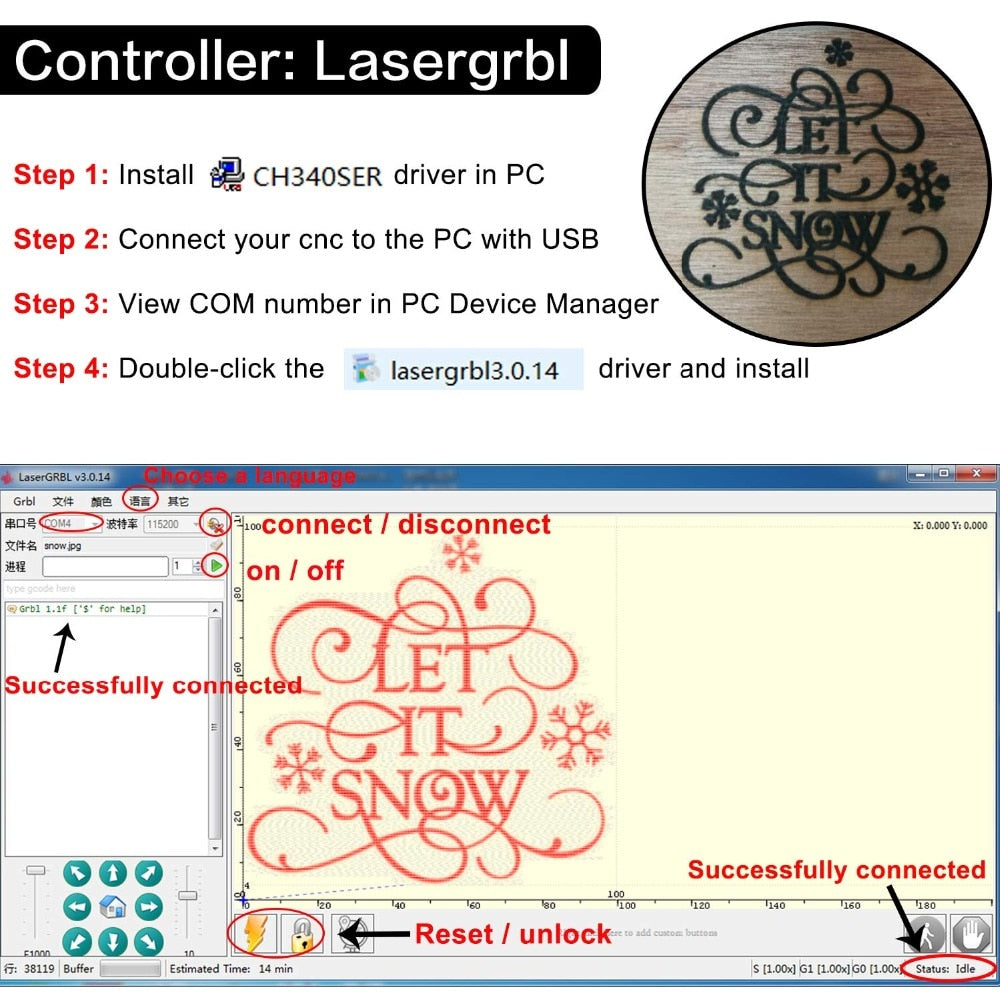

2. Software: GRBL controller, UniversalGcodeSender
3. Input Voltage: 12-36V
4. Master chip: Atmel 328P (Arduino nano)
5. Stepper motor driver: A4988
6. Spindle drive chip: MOSFET (recommendation 12~36V, current: within 10A )
7. Spindle PWM speed: Support
8. Support stepper motor: 12V, the maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
9. Power Interface: 5.5-2.5mm DC interface

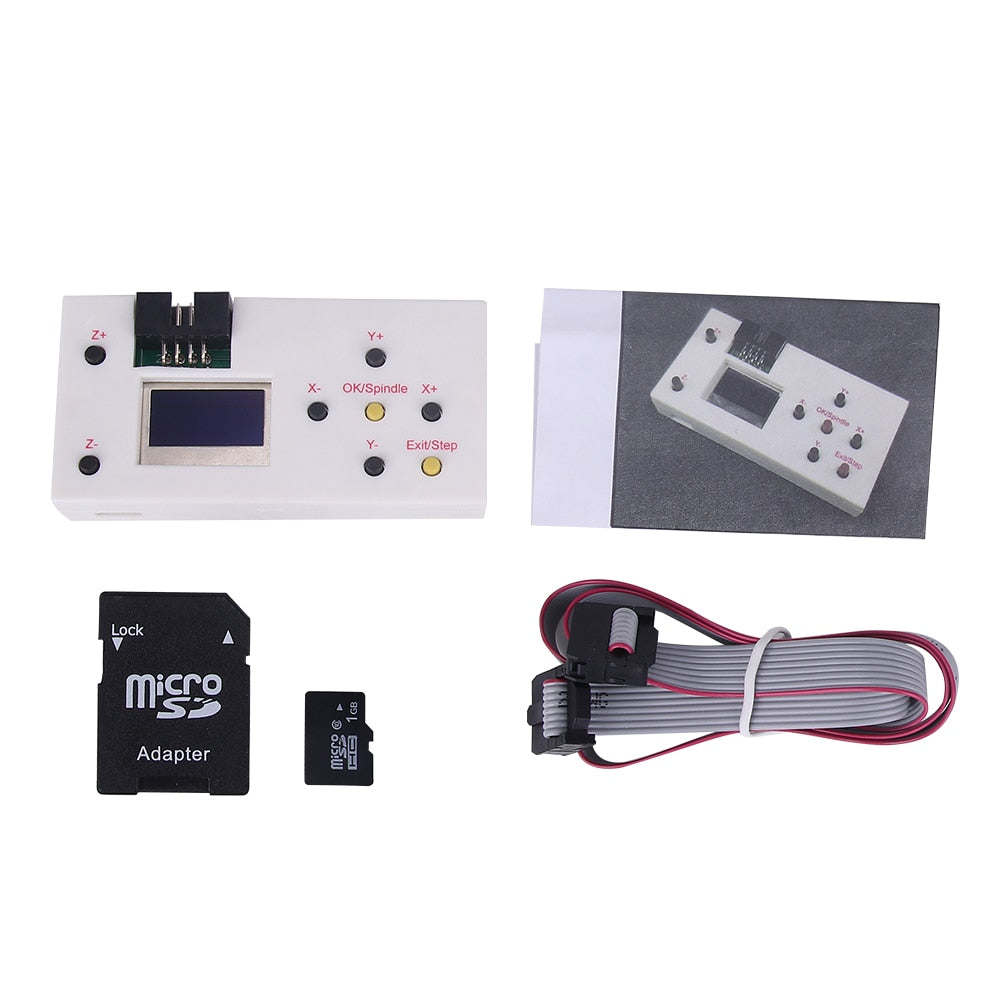

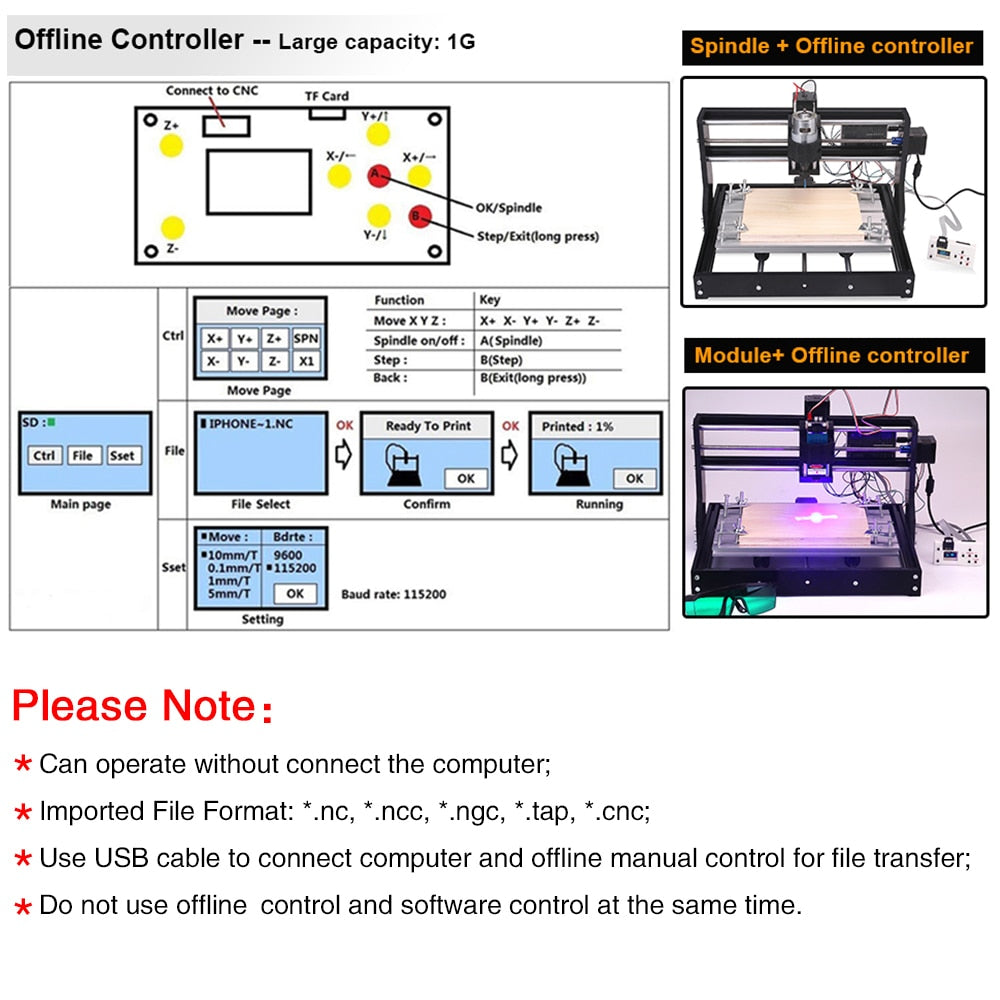

Offline Controller :
1. Manual control: The position of the XYZ-axis can be adjusted manually as the starting point of engraving.
2. Two-way access to files: After putting the file into the SD card, the engraved file can be directly identified.

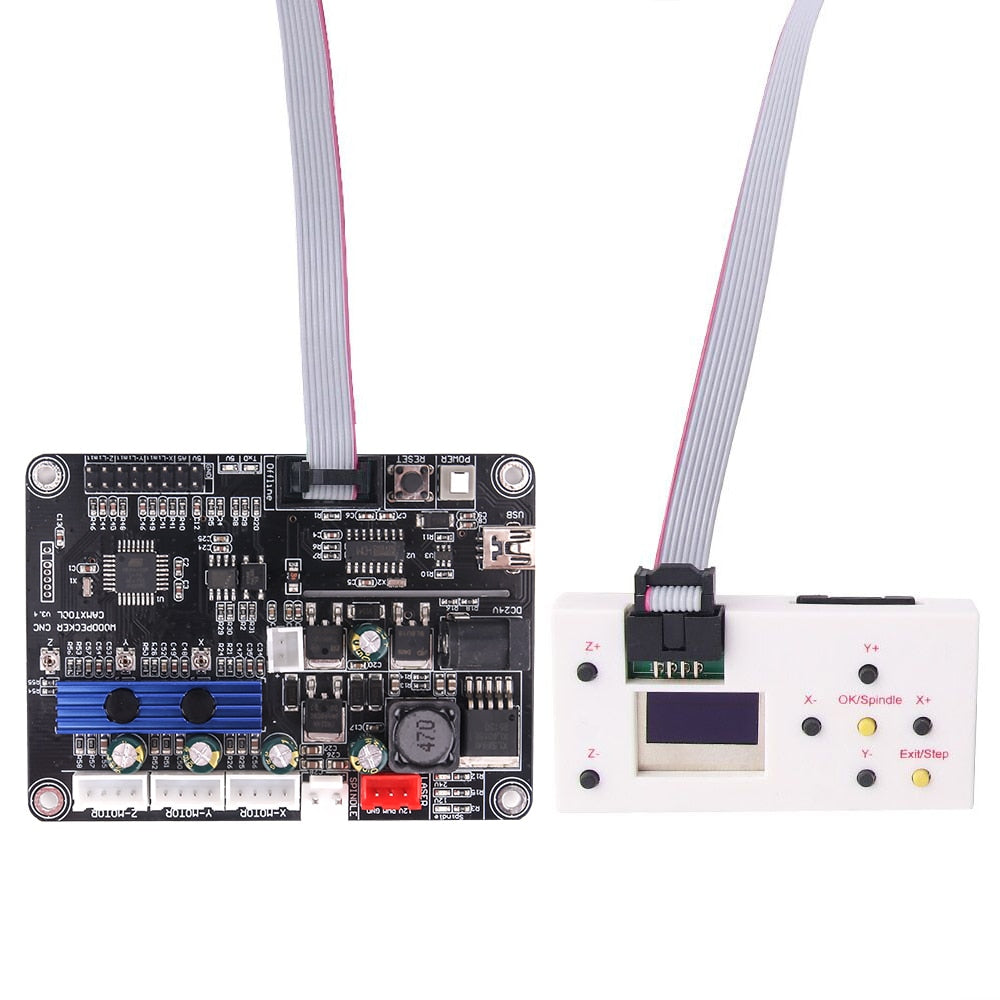

3. Easy to use: All you have to do is to connect the offline module to the GRBL controller board, and then you can use the module to control the CNC router.
