TwoWin Milling Machine Working Cross Table Mill Machine Compound Drilling Slide Table For Bench Drill Adjustme X-Y
Couldn't load pickup availability

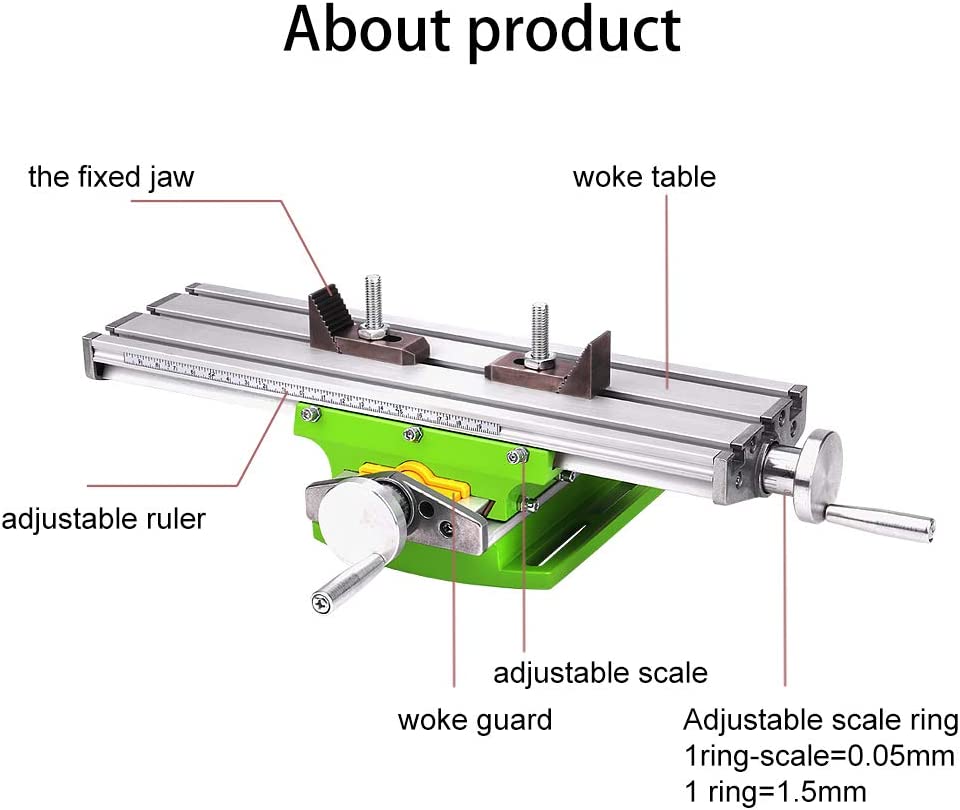

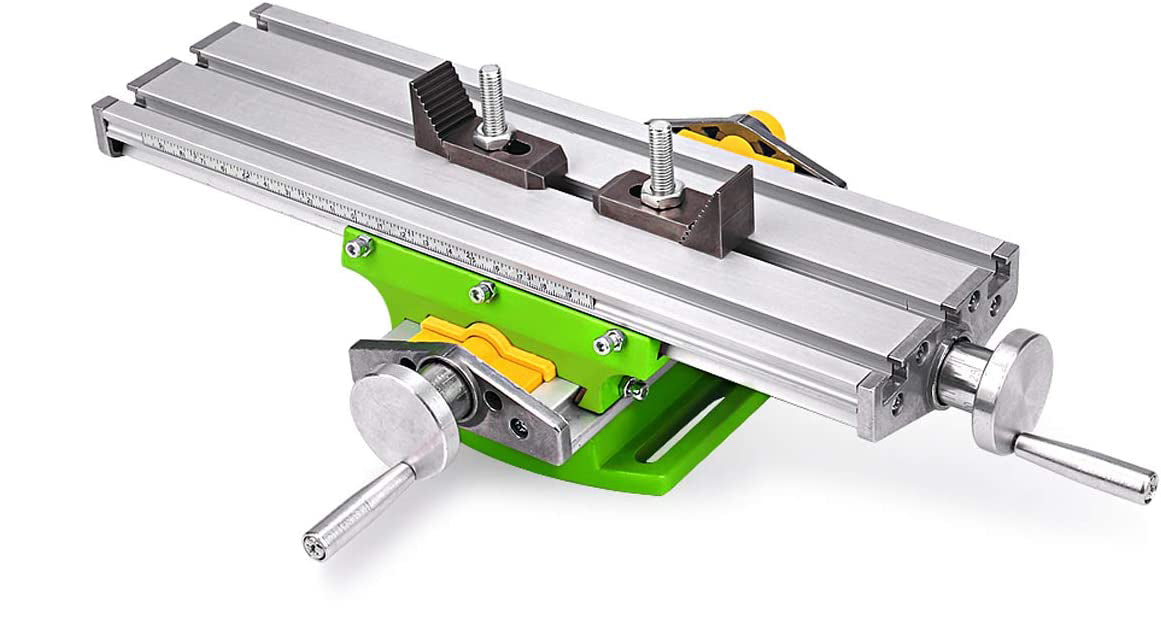

Mini multifunctional working table 6330.The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.

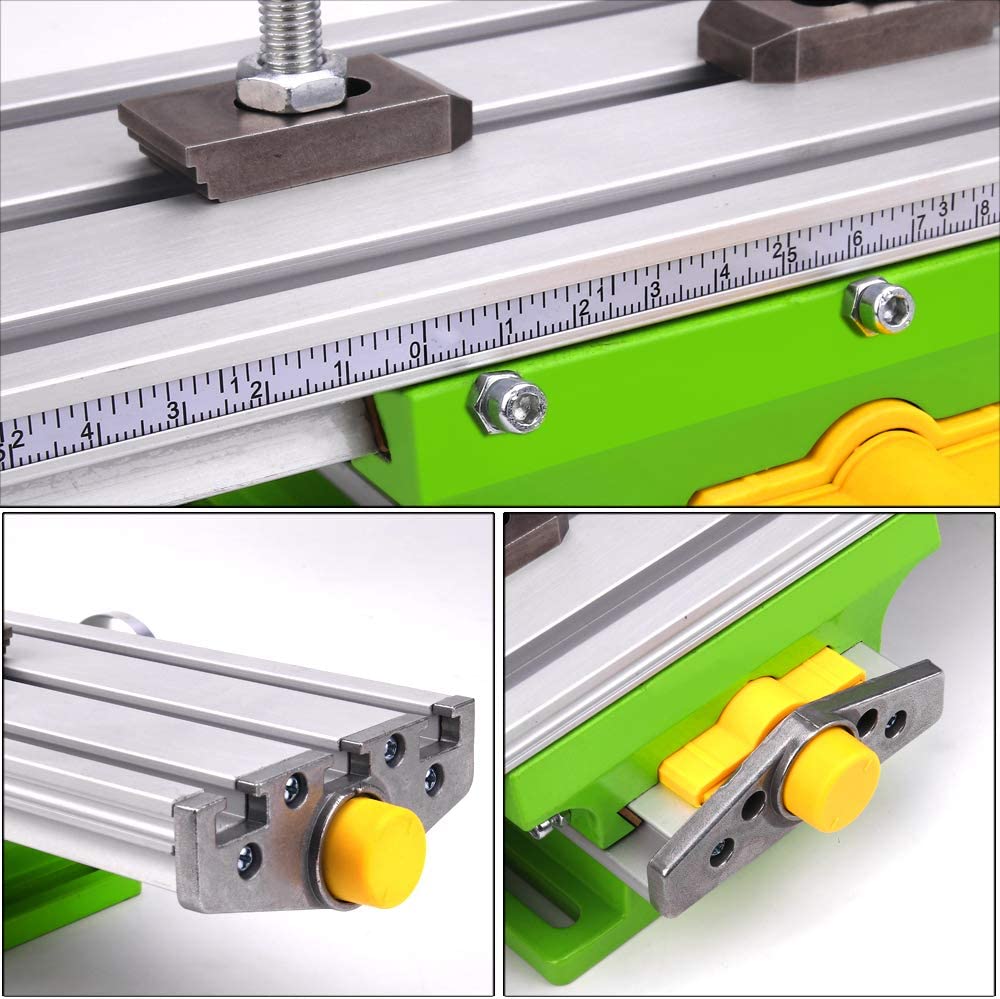

The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.

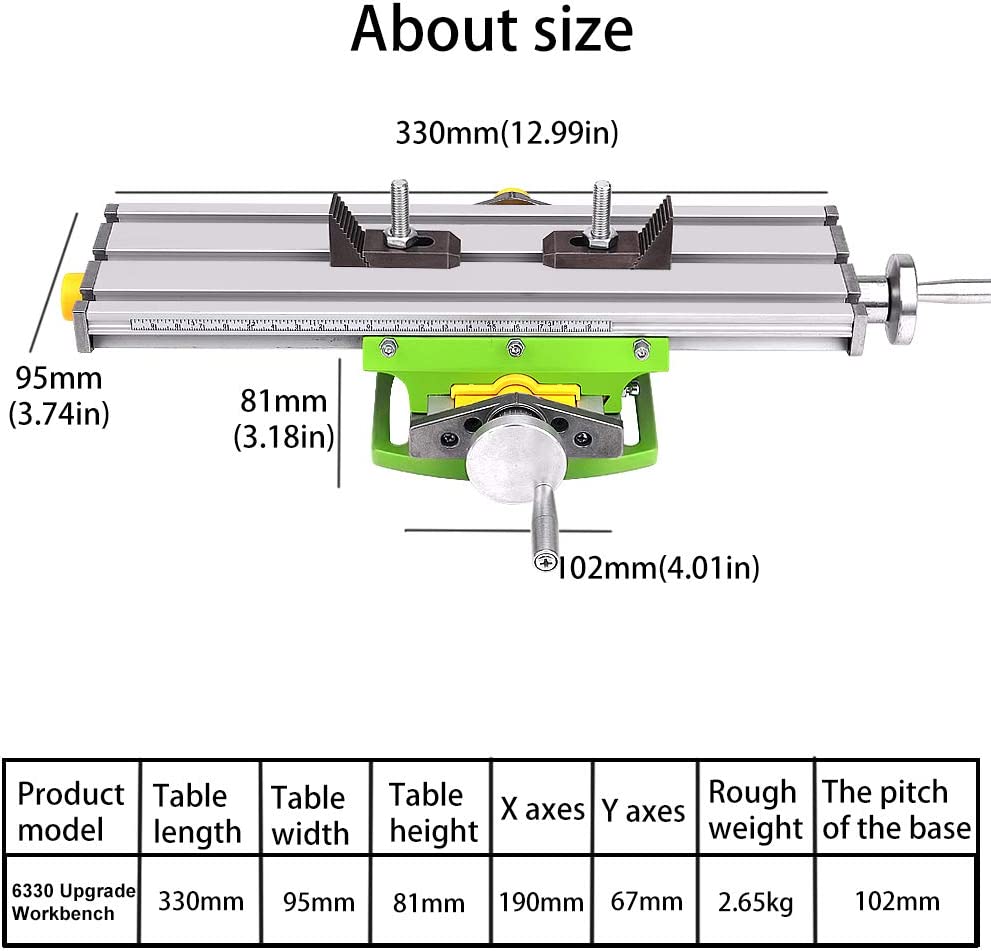

Table size: 330 × 95mm. Hand wheel with adjustable scale:A ring=1.5mm.
Adjustment in X direction: 190mm. Adjustment in Y direction: 65 mm. Distance between grooves : 34mm
Standard accessories: 3 # Hexagonal wrench * 1, exquisite equipment * 1, M8 * 30 Corresponding screw, M8 nut.
Date First Available: August 19, 2022
