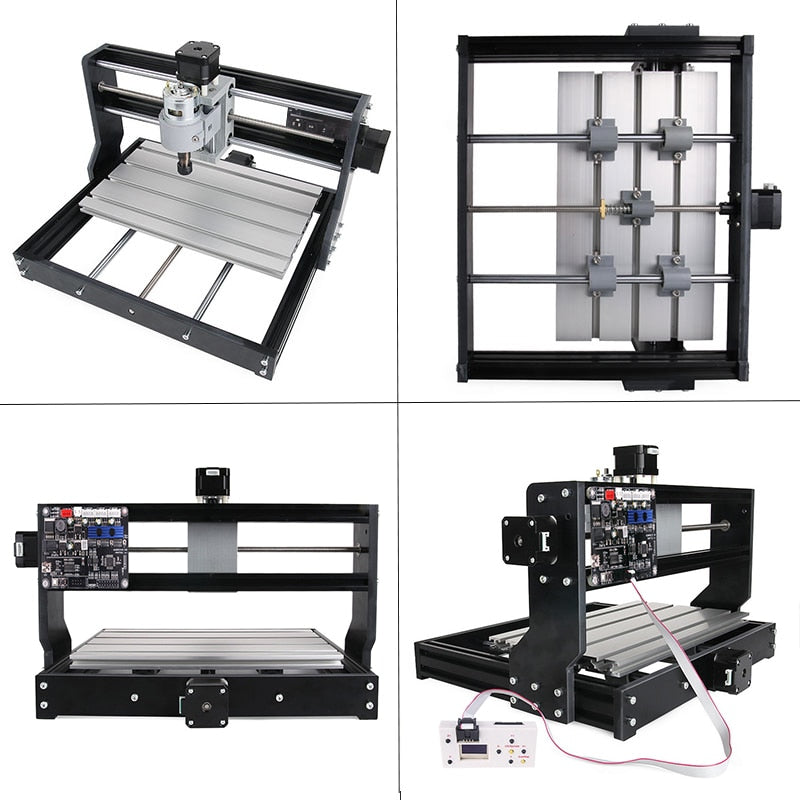

iklestar™ CNC Router 3018-PRO DIY Kit
1Couldn't load pickup availability

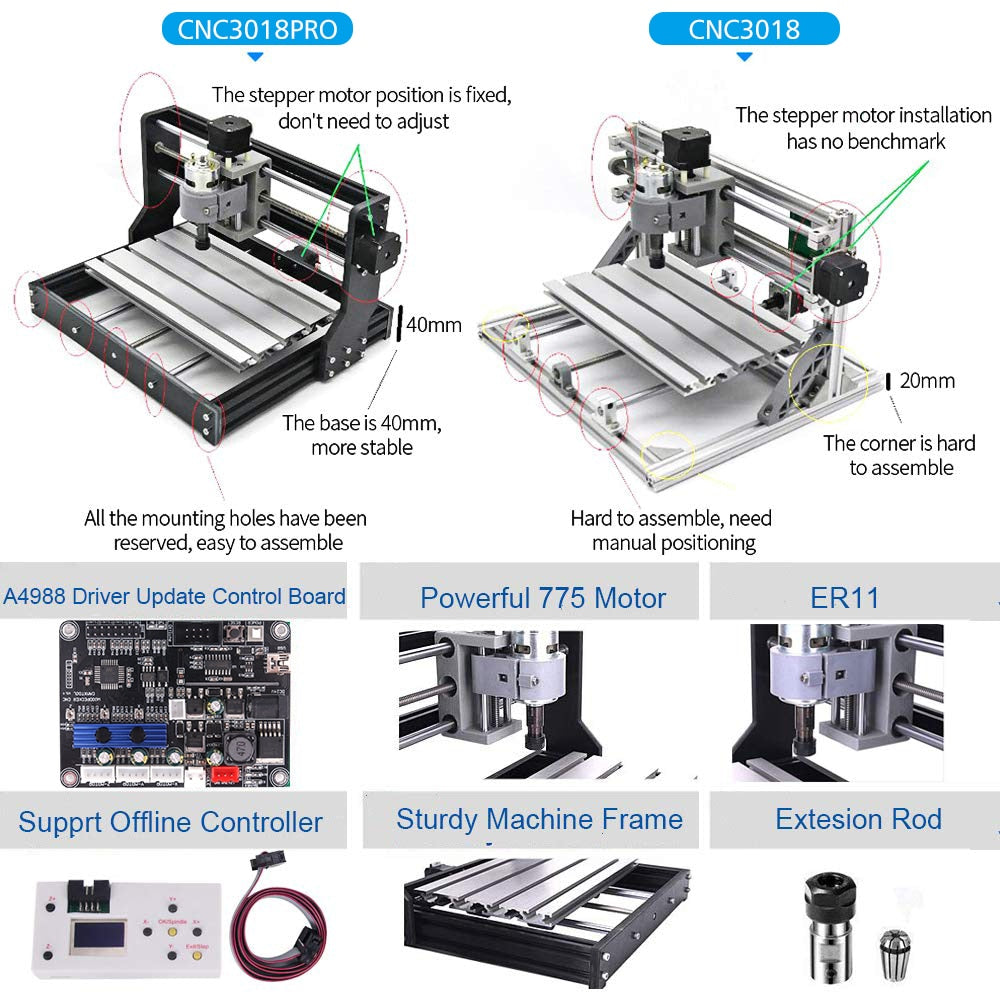

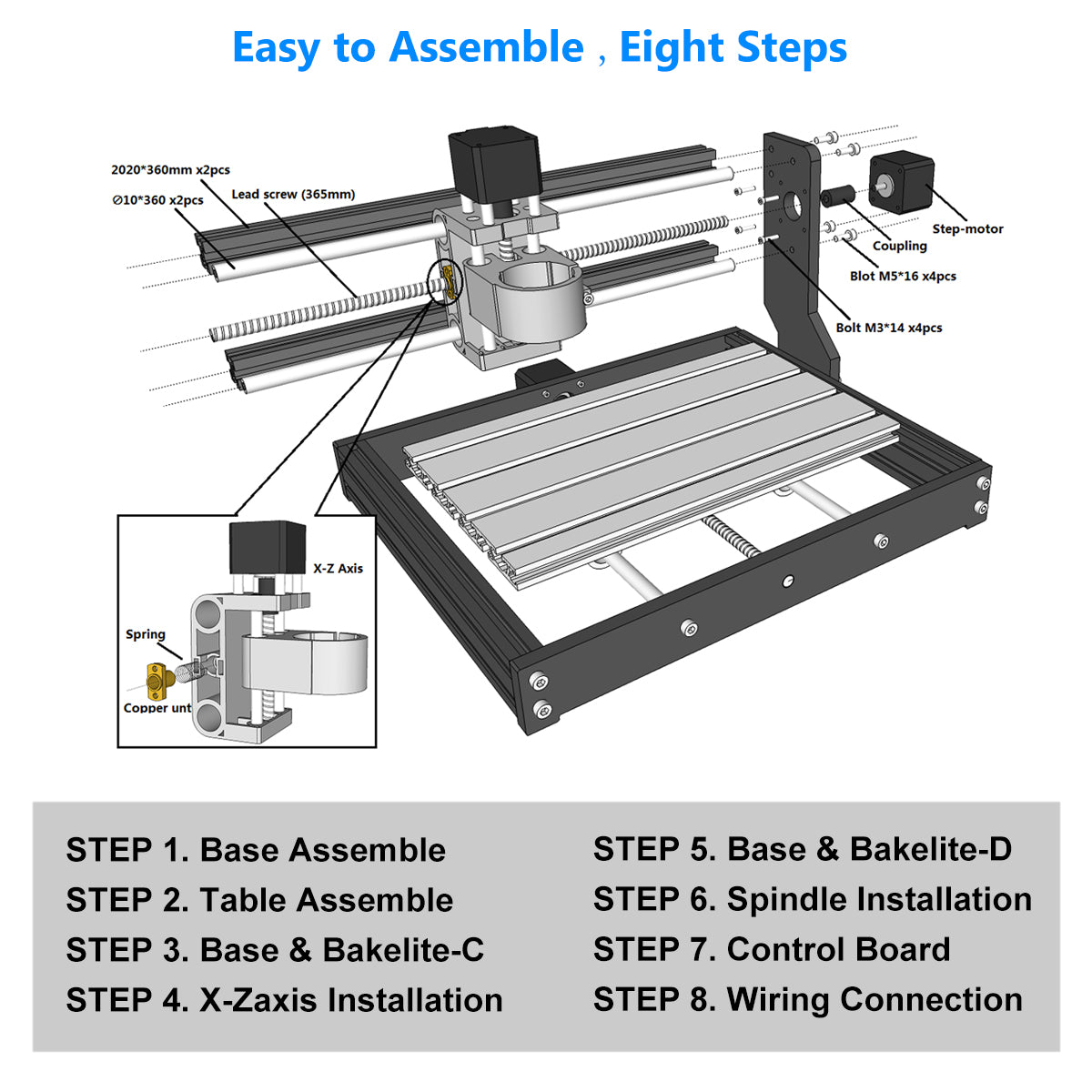

Looking for a high-quality CNC router? 3018-PRO is an upgraded version of 3018. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. The base height is raised to 4cm for better stability.
UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed.
The iklestar™ 3018-PRO uses GRBL, high-performance open-source software for controlling movement. Its dependability and simplicity make GRBL an industry standard, so there's no lack of support and resources available when you get stuck.
Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the Iklestar™ 3018-PRO can be used on a wide range of projects and materials.
Tips: Click to join iklestar CNC Machine User Facebook Group
Specification:

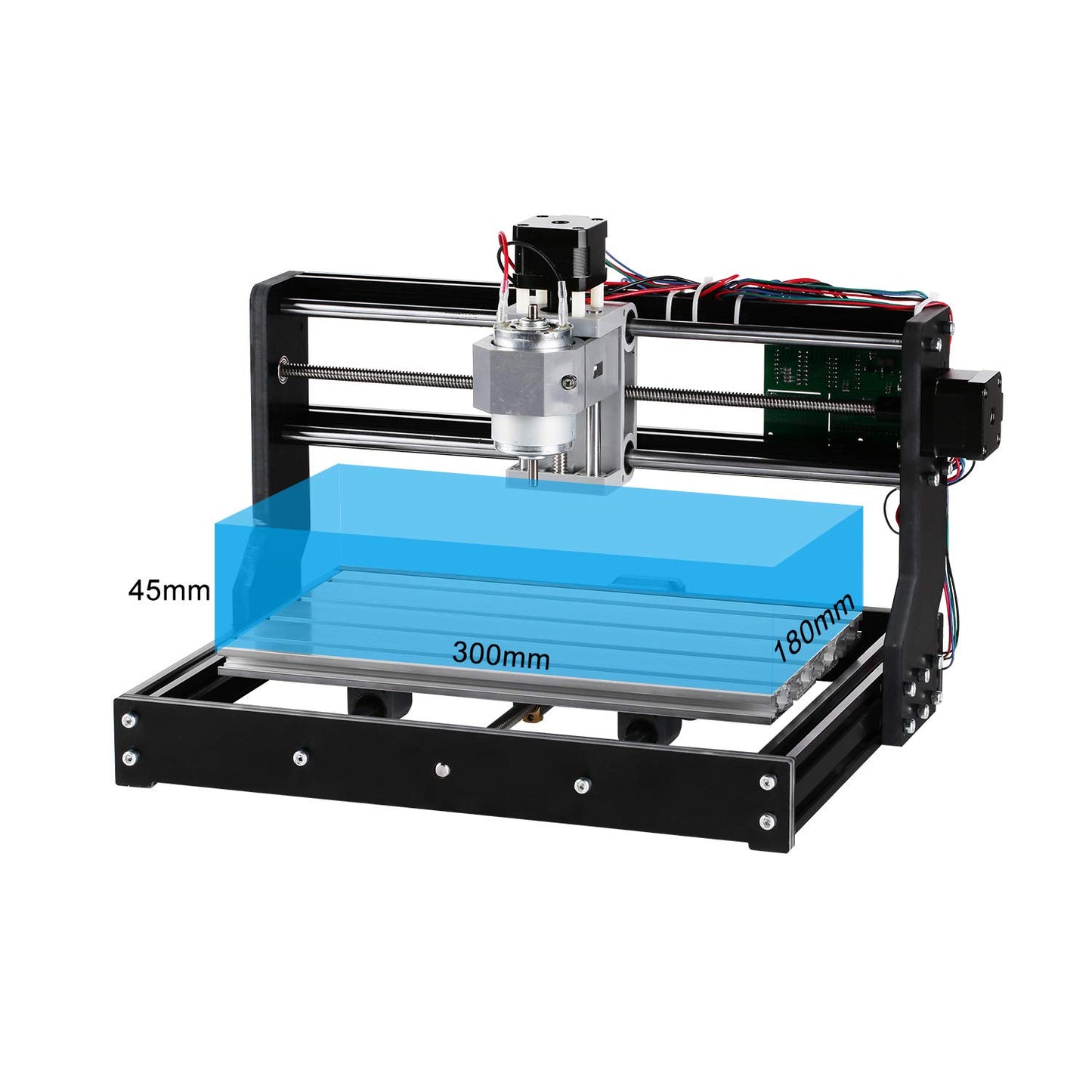

- Effective Engraving Area: 300 * 180 * 45 mm(11.8 * 7.1 * 1.8")
- Frame Size: 400 * 330 * 240 mm(15.7 * 13.0 * 9.4")
- Frame Material: Aluminum+PF
- Power Supply: 24V/5A
- Spindle: 775 motor, 24V, 8000 RPM
- XYZ Stepper Motor: 12V, 1.33A
- Supported OS: Windows XP, Windows 7, Windows 8, Windows 10

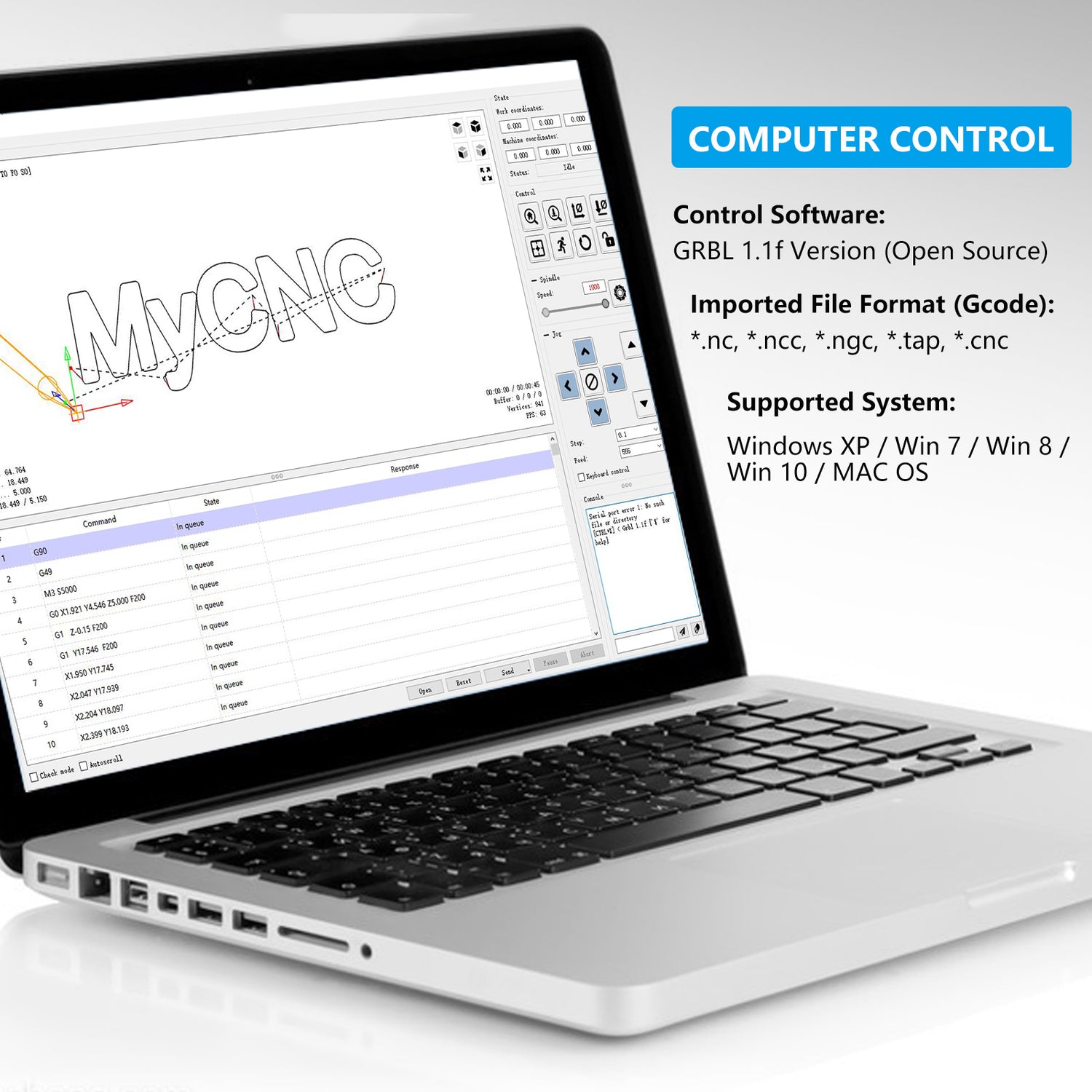

- Software: Grbl control (Candle)

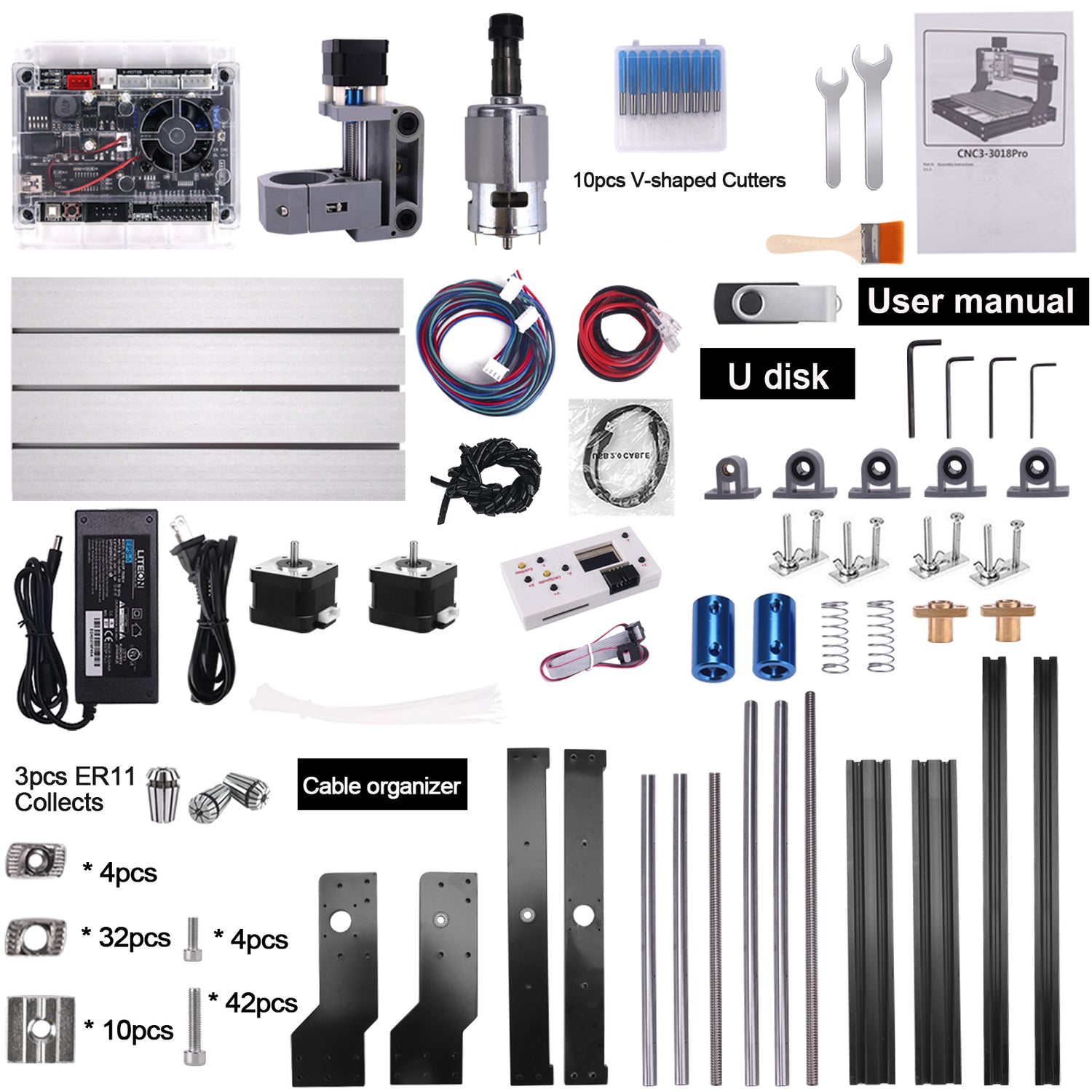

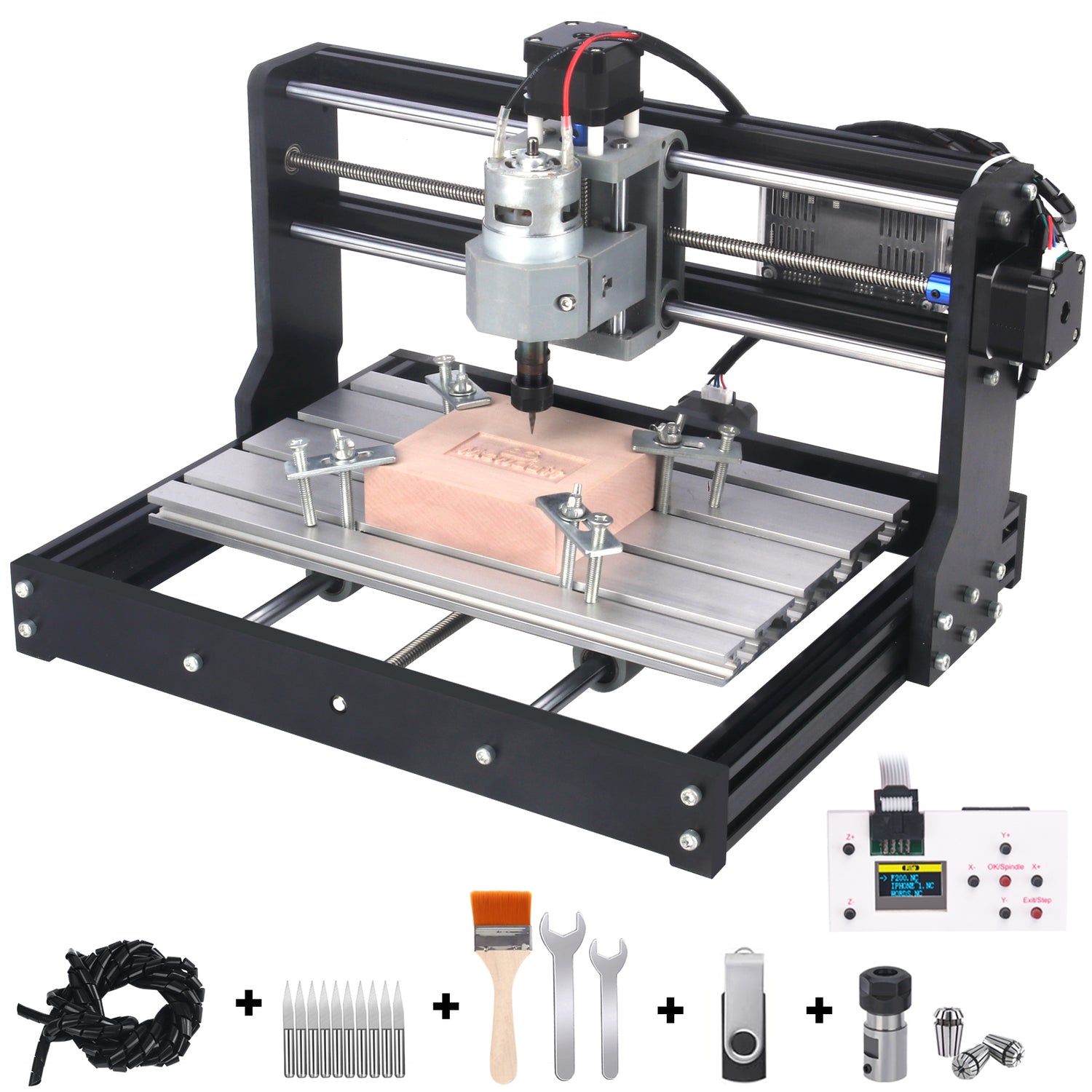

What's in the package:
- 1x CNC router 3018-PRO DIY Kit

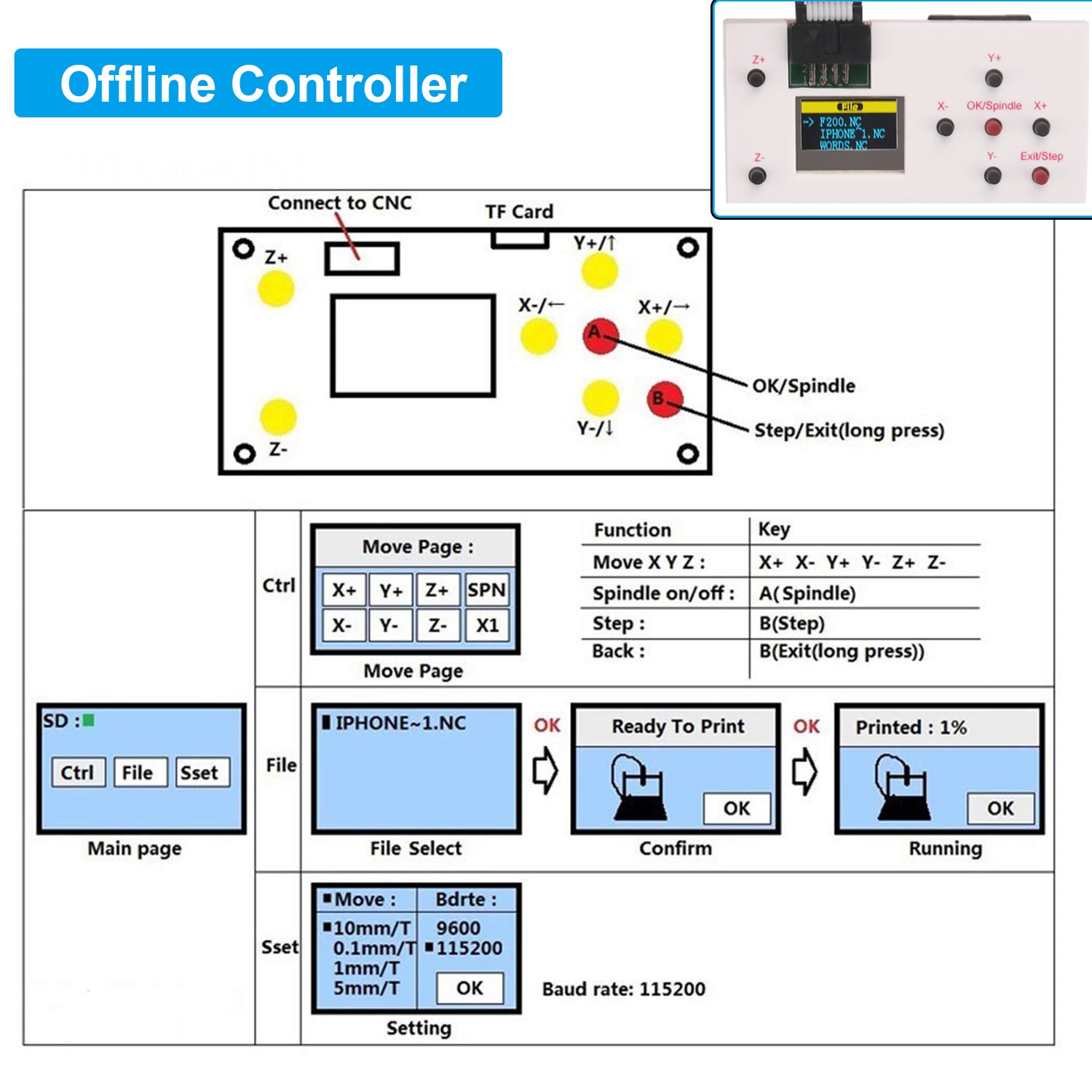

- 1x Offline Controller
- 1x U Disk
- 2x ER Wrenches
- 4x Plate Clamps

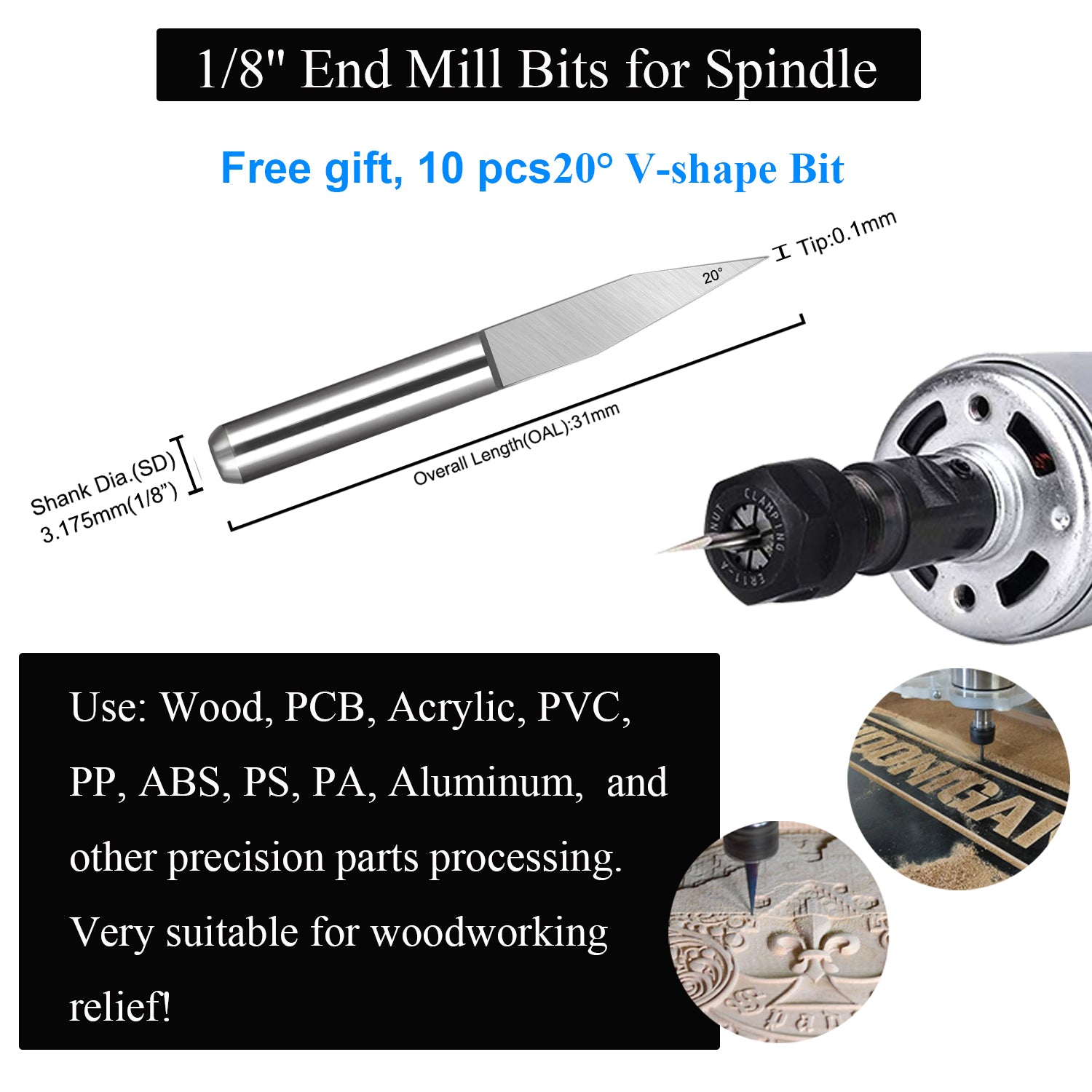

- 10x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)
